Samsung 55

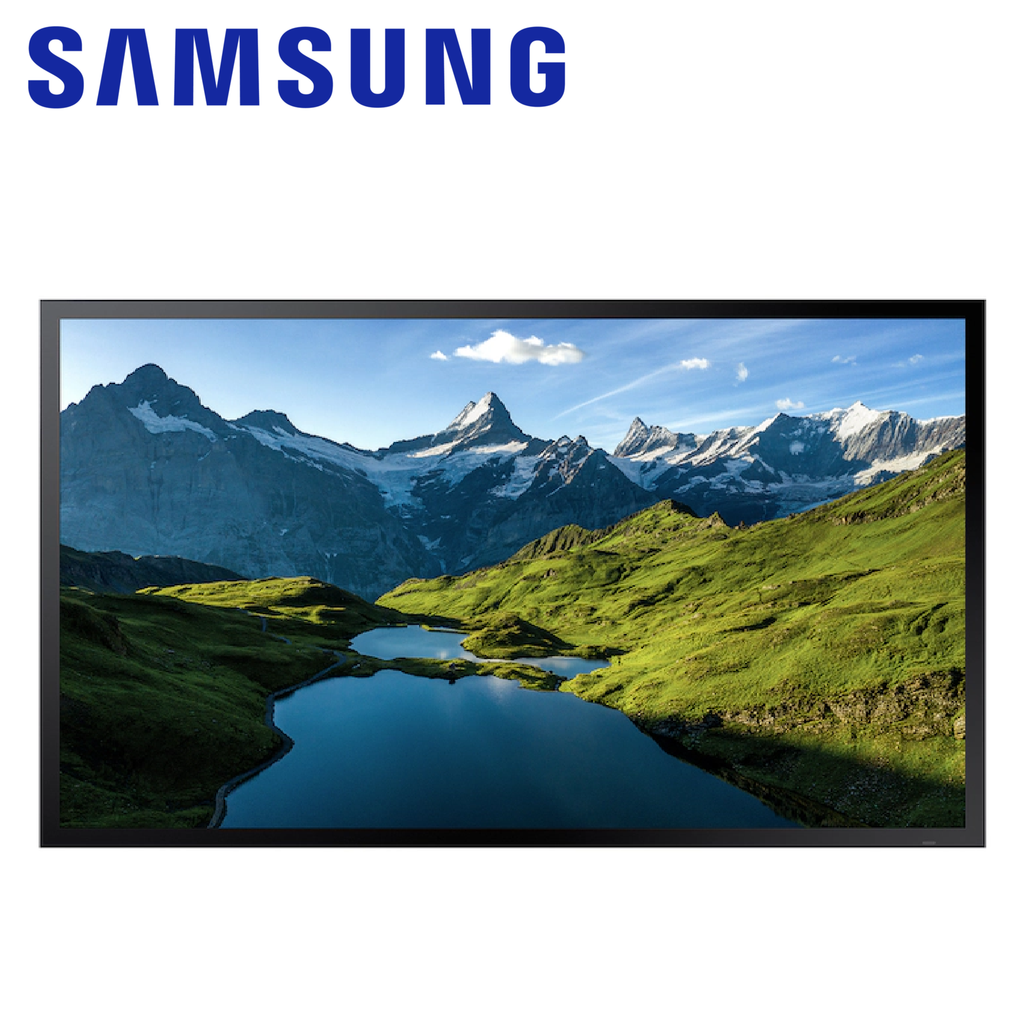

    Samsung 55" Weatherproof High Bright All-in-One Outdoor Signage OH55A-S

    $10,750.00 $11,750.00
    Tax included. Shipping calculated at checkout.

    Deliver bright and brilliant messages outdoors

    Powerful performance with slim design and outstanding visibility. Standout from the crowd 24/7, come rain or shine with a fully weatherproof high bright All-in-one outdoor signage solution. Designed with exceptional brightness and robust, slim design, OHA-S outdoor displays will capture your customer’s attention, even under strong and direct sunlight. A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection, anti-reflection technology, vandalism defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.


    Deliver bright and brilliant messages outdoors

    Eye-catching visuals from everywhere

    The OHA-S is UL-verified for outdoor visibility, offering greater brightness than 3,500nit and 24/7 performance to deliver crisp vivid content anytime, anywhere. Plus, a built-in auto brightness sensor automatically adjusts brightness based on any external lighting, for a versatile, operationally efficient display.


    Eye-catching visuals from everywhere

    Bright and vivid colors for accurate communication and delivery

    The OHA-S series delivers advanced color accuracy and brightness, creating vivid content through enhanced color reproduction of all red, green and blue shades. With crisp content being what customers now expect, the OHA-S’s uncompromised picture quality will be sure to capture customer attention.


    Bright and vivid colors for accurate communication and delivery

    Outstanding visibility even in direct sunlight

    Samsung OHA-S is enhanced by Magic Protection Glass, which utilizes advanced anti-reflection technology. This innovative solution ensures much better visibility when viewing even in direct sunlight, and Samsung’s circular polarizing technology allows content to be easily viewed even while wearing polarized sunglasses.


    Outstanding visibility even in direct sunlight

    Built for the outdoors, a true all-weather display

    With certified, IP56-rated protection and four newly added internal fans, OHA-S is not only waterproof but also weatherproof against the damaging effects of humidity, sun, rain, snow, dust wind, sleet and corrosion. IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529)


    Built for the outdoors, a true all-weather display

    Prevent humidity for optimal performance

    With four newly added, hidden fans in the downside of the display, the OHA-S reduces concerns around external humidity issues such as condensation. The effective air propelling capabilities of the display by the fans enable seamless operation.


    Prevent humidity for optimal performance

    Robust durability for screen safety

    Fitted with tempered Magic Protection Glass, the Samsung OHA-S provides durability that is IK10-rated, ensuring advanced safety and protection against external impact and damage. This ensures the product is safe against vandalism for store manager peace of mind. The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.


    Robust durability for screen safety

    Powerful performance with slim design

    A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection, anti-reflection technology, damage defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame


    Powerful performance with slim design

    Display Specifications

    • Screen Size: 55"
    • Panel Technology: 120Hz E-LED BLU
    • Resolution: 1920 x 1080 (16:9)
    • Brightness: 3,500 nits
    • Contrast Ratio (Typical): 5,000:1
    • Viewing Angle (H/V): 178/178
    • Response Time: 8ms

    Connectivity

    • Input:
      • VIDEO: HDMI 2.0 (2), HDBaseT (LAN Common)
      • HDCP: HDCP 2.2
      • USB: USB (1)
    • Output:
      • AUDIO: Stereo Mini Jack
    • External Control: RS232C (In/Out), RJ45 (In/Out), HDBaseT

    Power

    • Power Supply: AC 100 - 240 V, 50/60 Hz
    • Power Consumption (Typical/Max): 159 W/h / 530 W/h
    • Power Consumption (Standby): Less than 0.5W

    Environmental Conditions

    • Operating Temperature: -30℃ ~ 50℃
    • Operating Humidity: 10 ~ 80% (Non-condensing)

    Features

    • Key Features: Power-box Integrated, IP56 Outdoor, Built-in MagicInfo Player S6, SSSP 6.0
    • Special Features: IP56 Rated Simple Enclosure Outdoor, Protection Glass (IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HDBaseT for Long Distance Installing, Portrait/Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery (80hrs Clock Keeping), Kensington Lock
    • 24/7 Operation: Yes
    • Outdoor: Yes
    • System On Chip: Yes

    Internal Player

    • Processor: Cortex A72 1.7GHz Quad-Core CPU
    • On-Chip Cache Memory:
      • L1 Instruction Cache: 48KB
      • L1 Data Cache: 32KB
      • L2 Cache: 2MB
    • Clock Speed: 1.7GHz
    • Main Memory Interface: 2.5GB LPDDR4 1.5GHz 64bit
    • Graphics:
      • Graphic resolution: 1920x1080
      • Output resolution: 1920x1080
      • Supports OpenGL ES
    • Storage: 8GB (3.88GB Occupied by O/S, 4.12GB Available)
    • Multimedia:
      • Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
      • Audio Decoder: AC3 (DD), MPEG
    • IO Ports: USB 2.0
    • Operating System: Tizen 5.0 (VDLinux)

    Dimensions

    • Without Stand (W x H x D): 1260.6 x 731.4 x 85.0 mm
    • Packaging (W x H x D): 1358 x 845 x 230 mm
