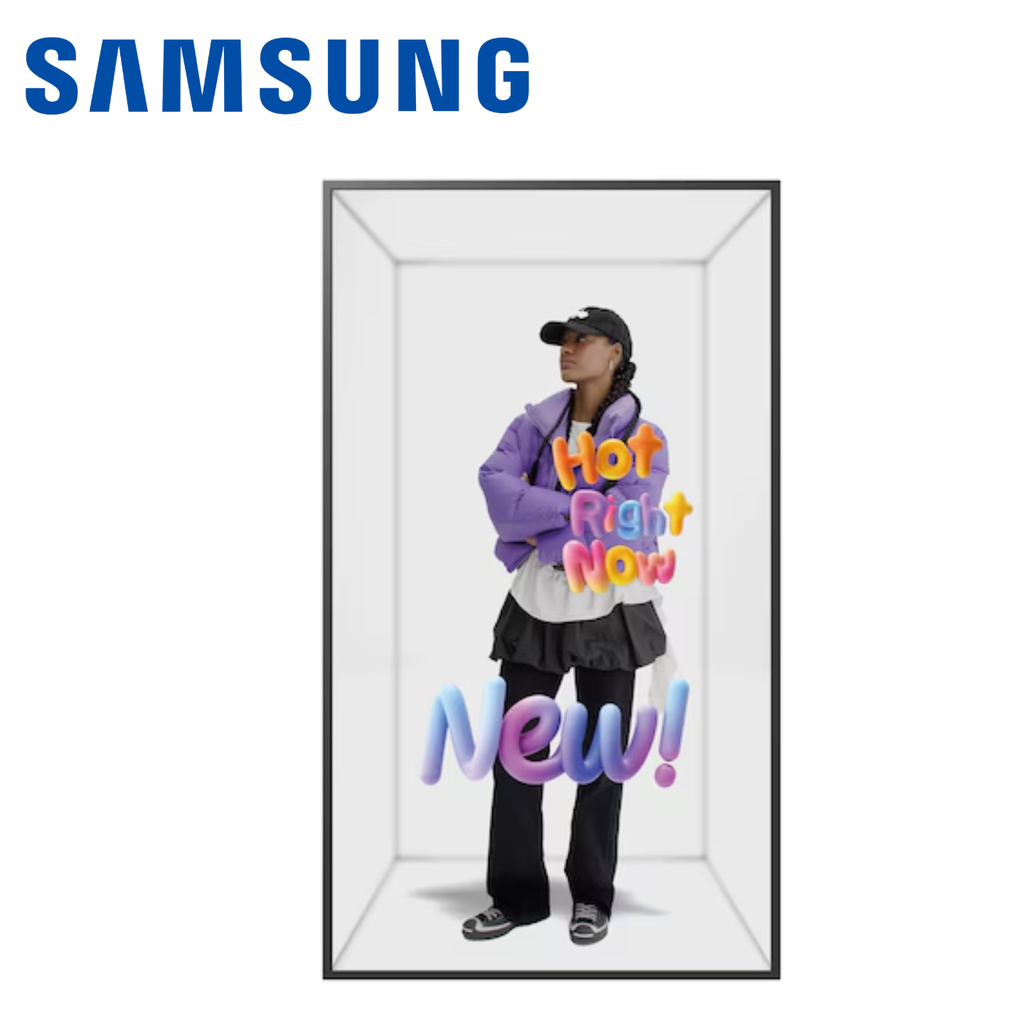

| Specification | 85" Spatial Signage SMHX-P |
|---|---|
| Product Information | |
| Product Name | 85" Spatial Signage SMHX-P |
| Screen Size | 85" |
| Display | |
| Diagonal Size | 85" |
| Panel Type | VA |
| Resolution | 4K (3840 x 2160) |
| Pixel Pitch (HxV) | 0.487 x 0.487 mm |
| Brightness (Typ) | 500 nit |
| Contrast Ratio | 4,000:1 |
| Viewing Angle (H/V) | 178 / 178 |
| Response Time | 10 (GTG) |
| Color Gamut (NTSC Coverage) | 72 % |
| Glass Haze | 25% |
| H-Scanning Frequency | 30 - 81 kHz |
| Maximum Pixel Frequency | 594 MHz |
| V-Scanning Frequency | 48 - 75 Hz |
| Contrast Ratio (Dynamic) | Mega |
| Operation Time Support | 24/7 |
| Connectivity | |
| HDMI In | 3 |
| DP In | 1 |
| Version of HDMI | 2 |
| Version of DP | 1.2 |
| Version of HDCP | 2.2 |
| USB | 2 |
| IR In | Yes |
| Audio In | No |
| Audio Out | Stereo Mini Jack |
| RS232 In | Yes |
| RS232 Out | Yes |
| RJ45 In | Yes |
| WiFi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC 100 - 240 V (50/60 Hz) |
| Power Consumption (On Mode) | 440 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (WxHxD) | 1101.2 x 1920.2 x 52.0 mm |
| Package Dimension (WxHxD) | 2093 x 1234 x 220 mm |
| Weight | |
| Set Weight | 49.0 kg |
| Package Weight | 61.9 kg |
| Operation Conditions | |
| Temperature | 0 ~ 40 â |
| Humidity | 10 ~ 80 (Non-Condensing) |
| Mechanical Specification | |
| VESA Mount | 400 x 600 mm |
| Bezel Width | 21.0 |
| Bezel Color | BLACK |
| Frame Material | Non-Glossy |
| SoC | |
| OS Version | Tizen 7.0 |
| Flash Memory Size | 16GB |
| Certification and Compliance | |
| EMC | Class A |
| Safety | 60950-1, 62368-1 |
