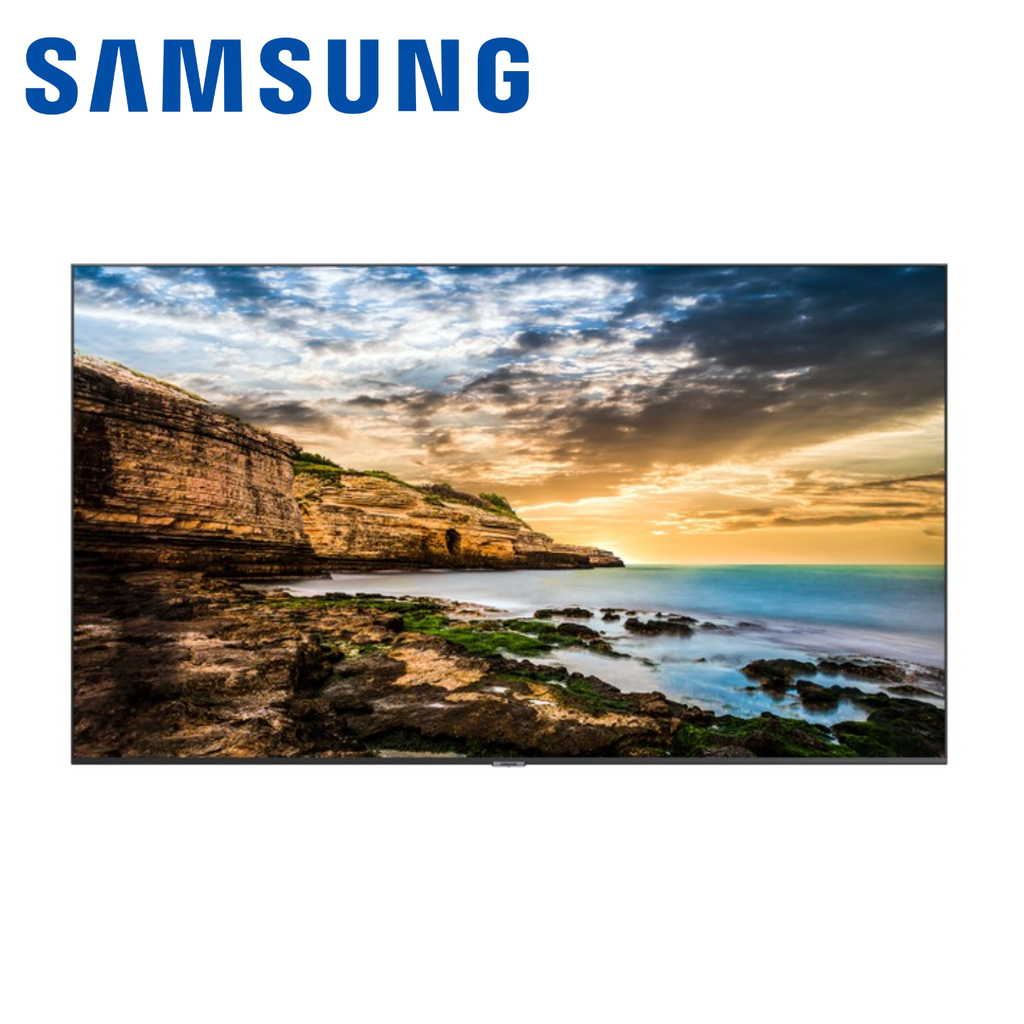

| Specification | 43" Crystal UHD 4K Signage QET (Option 1) | 55" Crystal UHD 4K Signage QET (Option 2) | 65" Crystal UHD 4K Signage QET (Option 3) |
|---|---|---|---|
| Display | |||
| Diagonal Size | 43" | 55" | 65" |
| Panel Type | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less |
| Resolution | 3,840 x 2,160 | 3,840 x 2,160 | 3,840 x 2,160 |
| Pixel Pitch (HxV) | 0.0817(H) ×0.2451(V) mm | 0.105(H)x 0.315(V) mm | 0.372(H) × 0.372(V) mm |
| Brightness | 300 cd/㎡ | 300 | 300 nit |
| Contrast Ratio | 4,000:1 | 4,000:1 | 1,200:1 |
| Viewing Angle (H/V) | 89 | 89 | 89 |
| Response Time | 8ms | 6.5ms | 8ms |
| Colour Gamut | 72% | 72% | 72% |
| Glass Haze | 2% | 2% | 2% |
| H-Scanning Frequency | 15 ~ 135kHZ | 15 ~ 135KHz | 15 ~ 135KHz |
| Maximum Pixel Frequency | 594MHz | 594MHz | 594MHz |
| V-Scanning Frequency | 24 ~ 75HZ | 24 ~ 75hz | 24 ~ 75hz |
| Contrast Ratio (Dynamic) | Mega DCR | Mega DCR | Mega |
| Connectivity | |||
| HDMI In | 2 | 2 | 2 |
| Version of HDMI | Not provided | Not provided | 2 |
| Version of DP | Not provided | Not provided | No |
| Version of HDCP | Not provided | Not provided | 2.2 |
| USB | 1 | 1 | 1 |
| Audio Out | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack |
| RS232 In | Stereo Mini Jack | Stereo Mini Jack | Stereo Mini Jack |
| RJ45 In | Yes | Yes | Yes |
| 3G Dongle | No | No | No |
| Power | |||
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC100-240V 50/60Hz |
| Power Consumption (On Mode) | 121 | 154 | 204 W |
| Power Consumption (Sleep Mode) | 0.5 W | 0.5 W | 0.5 W |
| Dimension | |||
| Set Dimension (WxHxD) | 963.9 x 558.9 x 59.6 mm | 1230.5 x 707.2 x 59.9 mm | 1449.4 x 830.3 x 59.9 mm |
| Package Dimension (WxHxD) | 1081 x 670 x 143 mm | 1386 x 843 x 158 mm | 1606 x 963 x 184 mm |
| Weight | |||
| Set Weight | 8.4 kg | 14.1 kg | 21.2 kg |
| Package Weight | 11.5 kg | 19.3 kg | 27.80 kg |
| Operation Conditions | |||
| Temperature | 0℃~ 40℃ | 0℃~ 40℃ | 0℃~ 40℃ |
| Humidity | 10 ~ 80%, non-condensing | 10 ~ 80%, non-condensing | 10 ~ 80%, non-condensing |
| Mechanical Specification | |||
| VESA Mount | 200 x 200 mm | 200 x 200 mm | 400 x 300 mm |
| Bezel Width | 3 Bezel-less | 3 Bezel-less | 3 Bezel-less |
| Bezel Color | Not provided | Not provided | Black |
| Frame Material | Glossy | Glossy | Glossy |
| Optional Feature | |||
| Mount | WMN4070SE | WMN4070SE | WMN4277SF |
| Stand | STN-L4355F | STN-L4355F | Not provided |
| Internal Player / SoC | |||
| MagicInfo Daisychain Videowall Support | No | No | Not provided |
| OS Version | Not provided | Not provided | Tizen 4.0 |
| Flash Memory Size | Not provided | Not provided | 8GB |
| Certification and Compliance | |||
| EMC | Class B | Class B | Class B FCC (USA) Part 15, Subpart B; KCC/EK (Korea); CE (Europe); VCCI (Japan); CCC (China); BSMI (Taiwan); C-Tick (Australia); GOST (Russia/CIS) |
| Safety | 60950-1 | 60950-1 | CB (Europe): IEC60950-1/EN60950-1; CCC (China): GB4943.1-2011; PSB (Singapore): PSB+IEC60950-1; NOM (Mexico); IRAM (Argentina); SASO (Saudi Arabia); BIS (India); KC (Korea); EAC (Russia); INMETRO (Brazil); BSMI (Taiwan); RCM (Australia); UL (USA): cUL60950 |
