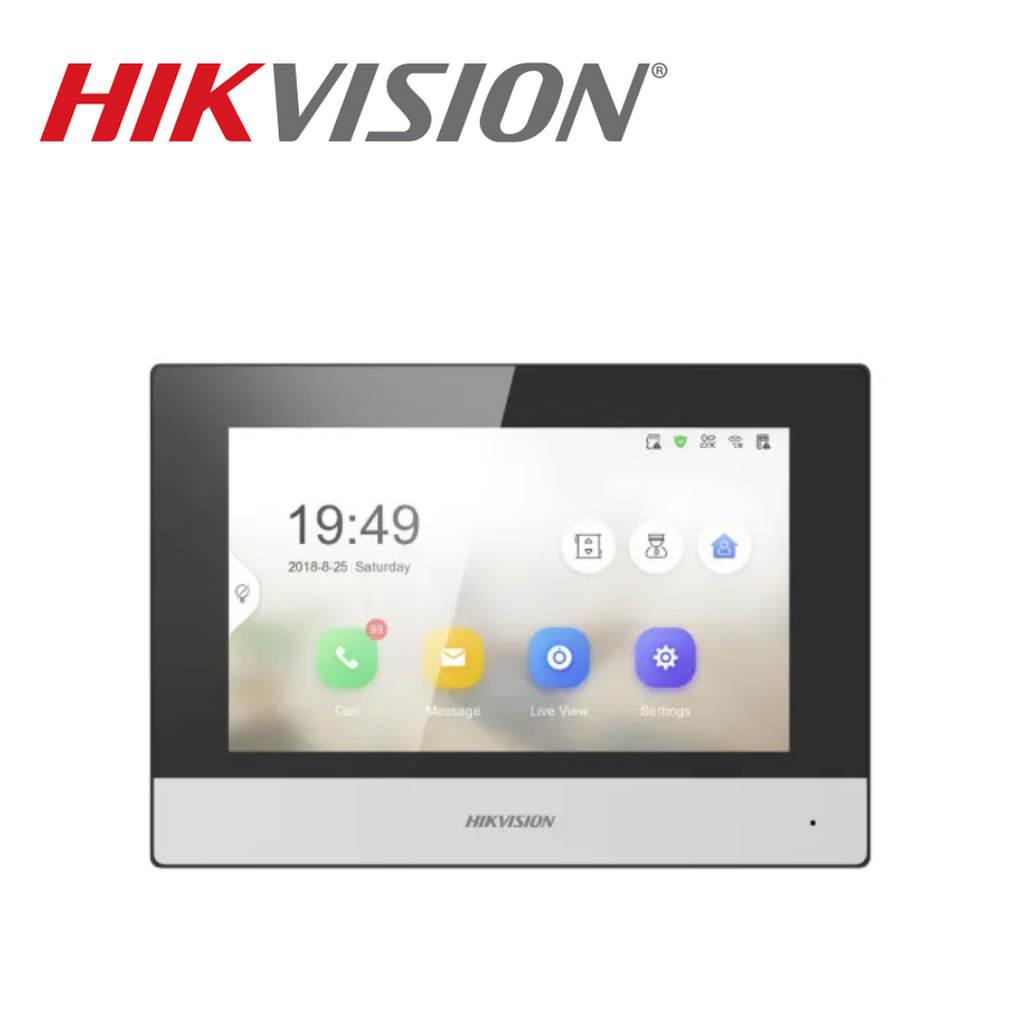

Hikvision KH6 Series IP-Based Indoor Station | DS-KH6320-WTE1

specifications:

System Parameters:

• Operating System: Linux
• ROM: 32 MB
• RAM: 128 MB
• Processor: Embedded high-performance processor

Display Parameters:

• Screen Size: 7-inch
• Operation Method: Capacitive touch screen
• Type: Colorful TFT
• Resolution: 1024 × 600

Video Parameters:

• Video Compression Standard: H.264
• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711U/G.711A
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity:

• Message Capacity:
  • TF card inserted: 200 captured pictures, 200 alarm records
  • Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
• Notice Capacity: 200
• Linked Indoor Extensions Capacity: 16
• Linked Doorphone Capacity: 17
• Linked Network Camera Capacity: 16

Network Parameters:

• Network Protocol: TCP/IP, SIP, RTSP
• Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
• RS-485: 1 RS-485 (Half duplex)
• TF Card: Support TF card, up to 128 GB

General:

• Installation: Surface mounting
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90% (no-condensing)
• Dimension (W × H × D): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Application Environment: Indoor
• Power Consumption: ≤ 5 W
• Language Support: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian

The KH6 series indoor station features a user-friendly design, mobile control, video intercom capabilities, and support for various languages, making it a versatile solution for residential and commercial applications.
