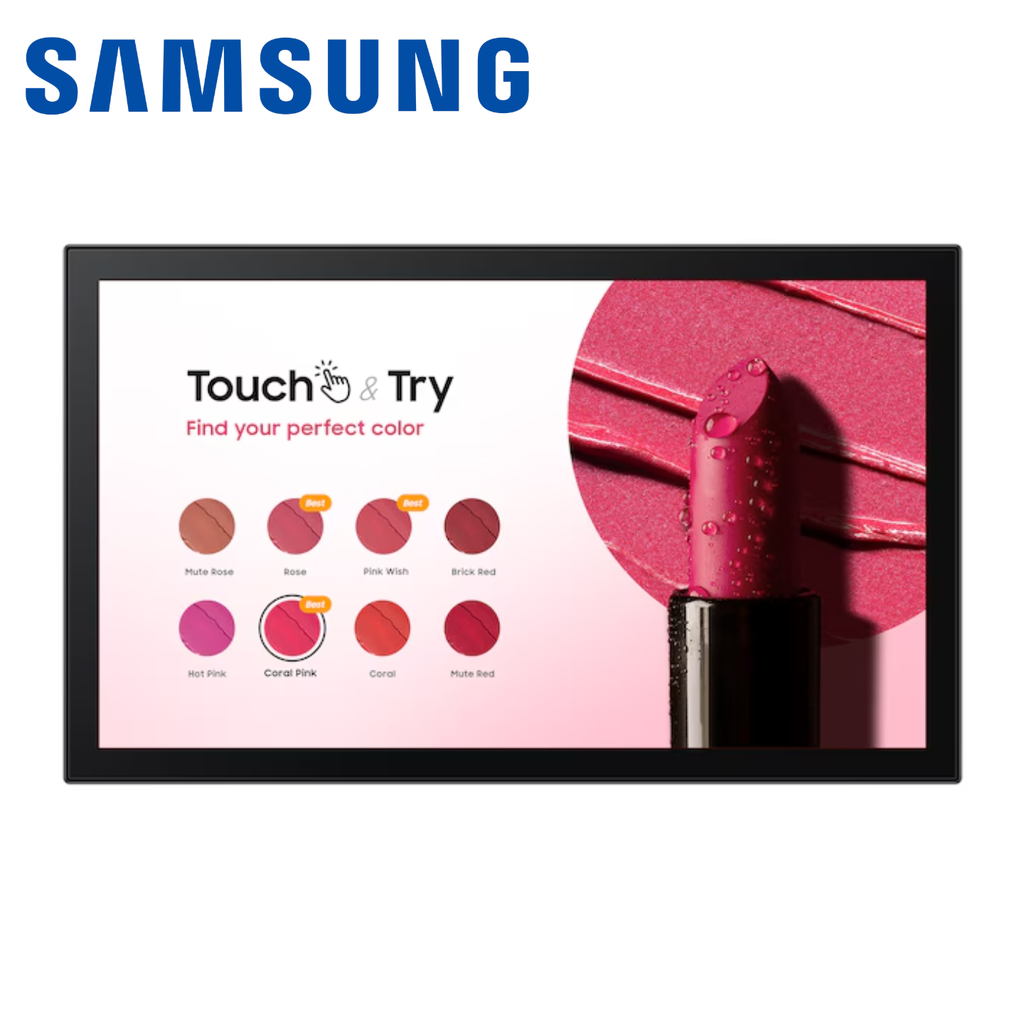

| Specification | Samsung 13" Small Touch Signage QBC-T |
|---|---|
| Product Information | |
| Product Name | 13" Small Touch Signage QBC-T |
| Model | QBC-T |
| Display | |
| Diagonal Size | 13" |
| Panel Type | ADS |
| Resolution | 1,920 x 1,080 |
| Pixel Pitch (HxV) | 0.153 x 0.153 mm |
| Brightness (Typ) | 500 (w/o Touch Glass) |
| Contrast Ratio | 600:1 |
| Viewing Angle (H/V) | 170/170 |
| Response Time | 30ms |
| Colour Gamut | 45% |
| Glass Haze | 25 % |
| H-Scanning Frequency | 30 - 81 kHz |
| Maximum Pixel Frequency | 148.5 MHz |
| V-Scanning Frequency | 48 - 75 Hz |
| Contrast Ratio (Dynamic) | 10,000:1 |
| Operation Time Support | 16/7 |
| Connectivity | |
| HDMI In | 1 |
| DP In | No |
| Version of HDMI | 1.4 |
| Version of DP | No |
| USB | 2 |
| IR In | No |
| Audio In | No |
| Audio Out | Stereo Mini Jack |
| RS232 In | Stereo Mini Jack |
| RJ45 In | Yes |
| WiFi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (WxHxD) | 322.0 x 193.5 x 22.0 mm |
| Package Dimension (WxHxD) | 520 x 64 x 238 mm |
| Weight | |
| Set Weight | 1.1 kg |
| Package Weight | 2.0 kg |
| Operation Conditions | |
| Temperature | 0 - 40 ℃ |
| Humidity | 10 - 80% (Non-Condensing) |
| Mechanical Specification | |
| VESA Mount | 100 x 100 mm |
| Bezel Color | Black |
| Frame Material | Non-Glossy |
| Optional Feature | |
| Touch | Yes |
| Mount | WMN-2090SC |
| Stand | Inbox (Simple Stand) (2ea) |
| SoC | |
| OS Version | Tizen 7.0 |
| Flash Memory Size | 8GB |
| Touch | |
| Touch Technology | Capacitive |
| Certification and Compliance | |
| EMC | Class B |
| Safety | 60950-1, 62368-1 |
