| Specification | Samsung 24" Small Digital Signage QB24C |
|---|---|
| Product Information | |

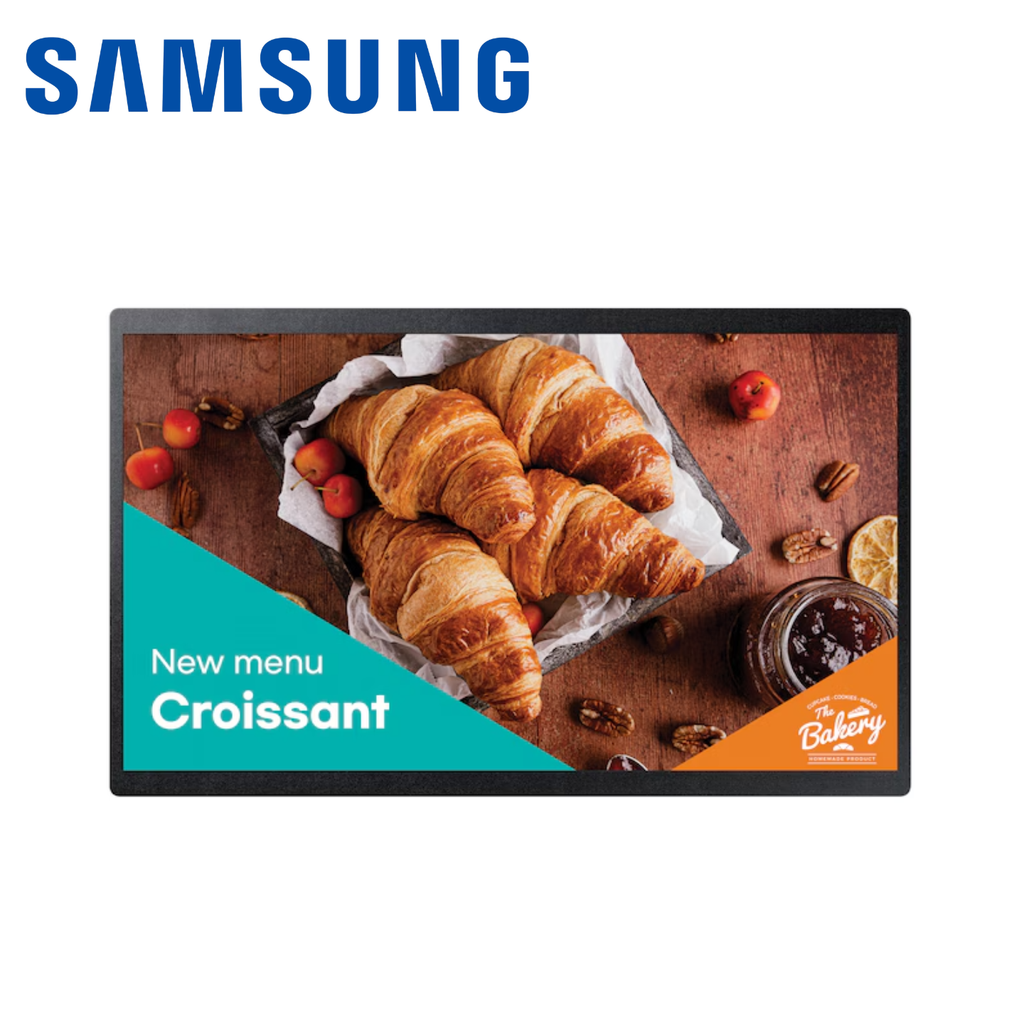

| Product Name | 24" Small Digital Signage QB24C |
| Model | QB24C |
| Display | |
| Diagonal Size | 23.8" |
| Panel Type | ADS |
| Resolution | 1,920 x 1,080 |
| Pixel Pitch (HxV) | 0.2745 x 0.2745 mm |
| Brightness (Typ) | 250 nit |
| Contrast Ratio | 1,000:1 |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 14ms |
| Color Gamut | 72(NTSC) |
| Glass Haze | 25 % |
| H-Scanning Frequency | 56~84.5KHz |
| Maximum Pixel Frequency | 148.5MHz |
| V-Scanning Frequency | 48~75Hz |
| Contrast Ratio (Dynamic) | Mega |
| Operation Time Support | 16/7 |
| Connectivity | |
| HDMI In | 1 |
| DP In | No |
| Version of HDMI | 1.4 |
| Version of DP | No |
| Version of HDCP | 2.2 |
| USB | 1 |
| IR In | Yes |
| Audio In | No |
| Audio Out | Stereo Mini Jack |
| RS232 In | Yes |
| RJ45 In | Yes |
| WiFi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (On Mode) | 38.5 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (WxHxD) | 547.9 x 334.4 x 31.8 mm |
| Package Dimension (WxHxD) | 620 x 419 x 122 mm |
| Weight | |
| Set Weight | 3.0 kg |
| Package Weight | 4.1 kg |
| Operation Conditions | |
| Temperature | 0 °C~ 40 °C |
| Humidity | 10 ~ 80%, non-condensing |
| Mechanical Specification | |
| VESA Mount | 100 x 100 mm |
| Bezel Width | UD : 17.9 / LR : 9.4 |
| Frame Material | Non-Glossy |
| Optional Feature | |
| Mount | No |
| Stand | No |
| SoC | |
| OS Version | Tizen 7.0 |
| Flash Memory Size | 8GB |
| Certification and Compliance | |
| EMC | Class B |
| Safety | 60950-1, 62368-1 |
