| Specification | Edifier S880DB MKII |
|---|---|
| General | |
| Audio Inputs | USB-C, Optical, Coaxial, Line In 1, Line In 2, Bluetooth |
| Bluetooth Version | Bluetooth 5.3 |
| Codecs | SBC, LDAC |
| Dimensions & Weight | |
| Active Speaker Dimensions | 145 × 237 × 207 mm |
| Passive Speaker Dimensions | 145 × 237 × 192 mm |
| Net Weight | 6.27kg |
| Audio Performance | |
| Total Output Power | Treble: 12W × 2 RMS Mid-low: 32W × 2 RMS |
| Driver | 3.75" Long-throw Aluminum Diaphragm Mid-low Drivers + 1.25" Titanium Diaphragm Dome Tweeters |
| Frequency Response | 50Hz to 40kHz |
| Signal-to-Noise Ratio | ≥ 85dB(A) |
| Input Sensitivity | |
| USB-C | 500 ± 50mFFS |
| Optical | 500 ± 50mFFS |
| Coaxial | 500 ± 50mFFS |
| Bluetooth | 500 ± 50mFFS |
| Line In 1 | 500 ± 50mV |
| Line In 2 | 700 ± 50mV |

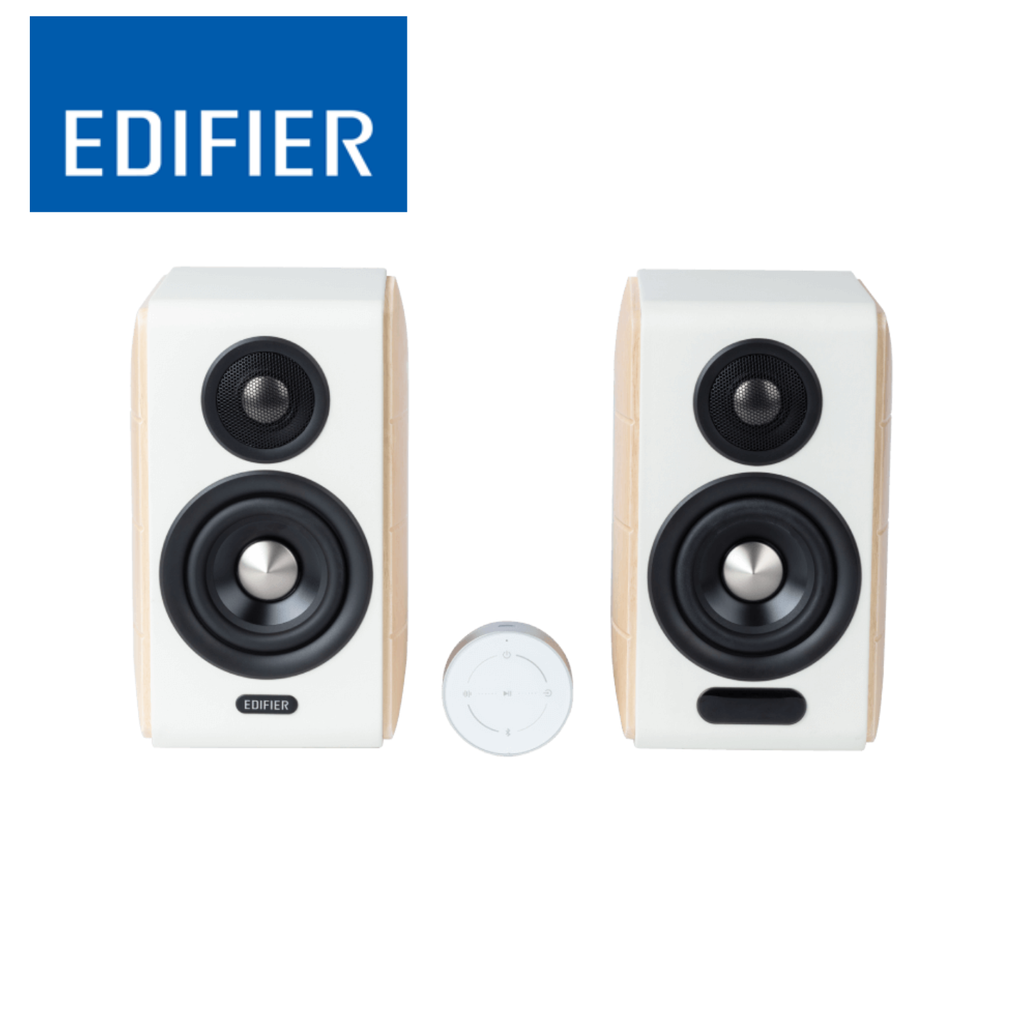

The S880DB MKII, a revamped successor to the S880DB, features complete upgrades across its acoustic architecture, electronic circuitry, user interface, and design, delivering an even more authentic Hi-Fi experience.
Both the tweeter and mid-bass units have been upgraded. The tweeter now features a 1.25-inch titanium dome (up from 1 inch), with a voice coil diameter increased to 25mm (from 19mm), and neodymium magnets, delivering crystal-clear and transparent highs. The redesigned 3.75-inch mid-bass driver enhances mid-range clarity and extends bass down to 50Hz, providing a more solid and balanced sound.
The S880DB MKII is equipped with high-performance chipsets from Texas Instruments and XMOS XU216, ensuring top-tier digital audio processing. These core modules support high-resolution audio at no less than 24bit/96kHz, delivering exceptional sound quality with ultra-low distortion. The system's powerful circuitry offers top-tier signal processing and superior audio fidelity.
ADC (Analogue-to-Digital Converter): Up to 24bit/192kHz
DSP (Digital Signal Processor): Up to 24bit/192kHz
DIX (Digital Interface Transceiver): Up to 24bit/216kHz
DAC (Digital-to-Analogue Converter): Up to 32bit/384kHz
XMOS XU216: 2,000 MIPS computational power, 24bit/192kHz
The digital interfaces support up to 24bit/192kHz, and the Texas Instruments analogue front end works at 24bit/96kHz, exceeding Hi-Res Audio certification standards.
USB-C: 44.1kHz, 48kHz, 96kHz, 192kHz
OPT: 44.1kHz, 48kHz, 96kHz, 192kHz
COAX: 44.1kHz, 48kHz, 96kHz, 192kHz
The Bluetooth 5.3 audio receiver supports LDAC codec at transmission rates up to 990kbps, enabling high-resolution wireless audio streaming at up to 24bit/96kHz from Android devices (Android 8.0 and later).
The SUB OUT port allows for the connection of an external subwoofer, delivering deeper and more powerful bass.
Easily manage playback with the new rechargeable 2.4GHz remote control or onboard speaker knobs. The OLED display with auto-dimming provides clear status information.
Download the EDIFIER ConneX app for enhanced control and customization.
Playback controls
Sound effect adjustments and customization
Access to the user manual and settings
