| Specification | Edifier T5s |
|---|---|
| General | |
| Audio Inputs | RCA |
| Dimensions & Weight | |
| Dimensions | 399 × 400 × 170 mm |
| Net Weight | 10.38kg |
| Audio Performance | |
| Total Output Power | 70W RMS |
| Driver | 8-inch / 220mm Driver |
| Frequency Response | 35Hz to 115Hz |
| Signal-to-Noise Ratio | ≥ 85dB(A) |
| Input Sensitivity | |
| Input Sensitivity | 150 ± 20mV |

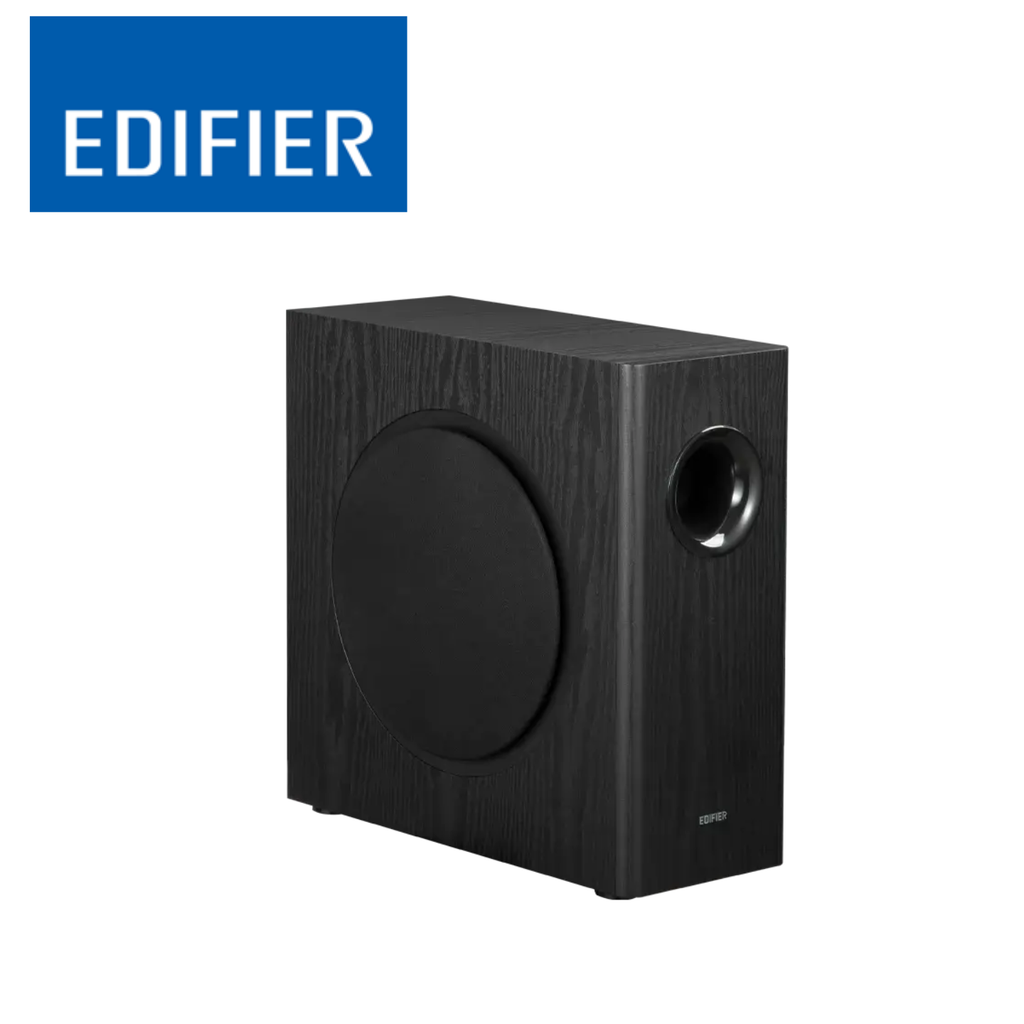

Equipped with an 8-inch long-throw woofer, this subwoofer delivers deep, room-filling bass with frequency response down to 35Hz. A high-efficiency switching power supply and a closed-loop Class-D amplifier provide 70W RMS output for powerful and consistent performance.
Featuring a high-performance analog front end and digital amplifier, the subwoofer ensures accurate audio conversion and amplification. The built-in digital signal processor (DSP) enables precise low-pass filtering and phase alignment for seamless integration with your speaker system.
An 18mm MDF (medium-density fiberboard) enclosure minimizes resonance and distortion, resulting in tight, clean, and well-defined bass response.
Signal In and Signal Out ports ensure broad compatibility with desktop speakers, bookshelf systems, and home theater receivers.
If your main speaker system includes a dedicated subwoofer output, connect it to the subwoofer's Signal In ports. Then connect the main speaker system directly to the audio source.
* Compatible EDIFIER speaker models: R1280Ts, R1280DBs, R1700BTs, R1850DB, R1855DB, R2750DB, R2850DB, S880DB MKII, D12, QR65
If your speaker system does not have a subwoofer port, connect its input to the subwoofer's Signal Out ports. Then connect the Signal In ports of the subwoofer to the audio source.
To conserve energy, the subwoofer automatically enters standby mode after 15 minutes of inactivity and wakes when audio playback resumes.
Wrapped in a wood grain vinyl finish with a low-profile grille, this subwoofer blends seamlessly into any room décor. The slim vertical cabinet design allows for flexible placement in tight or unconventional spaces.
