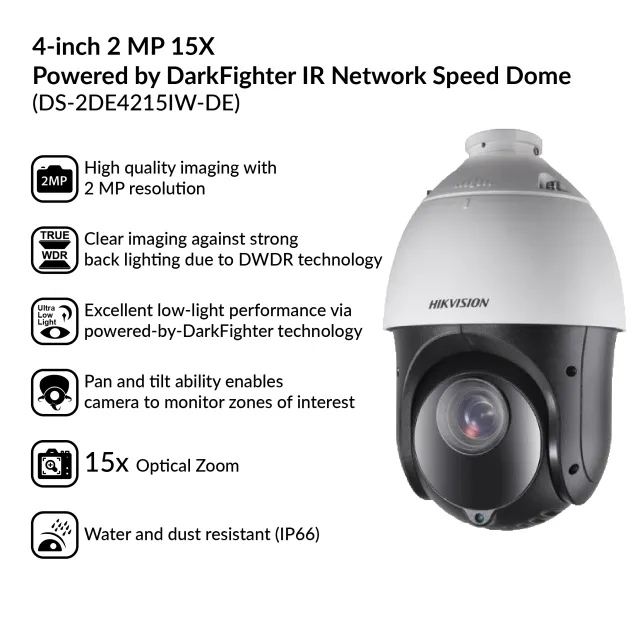

Hikvision 2MP 15X IR Network Speed Dome | DS-2DE4215IW-DE(T5)

Key Features:

• Focuses on human and vehicle targets classification based on deep learning
• Supports face capture with the ability to detect up to 5 faces simultaneously
• 1/2.8" Progressive Scan CMOS
• High-quality imaging with 2 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• 15× optical zoom and 16× digital zoom provide close-up views over expansive areas
• Expansive night view with up to 100 m IR distance
• Supports H.265+/H.265 video compression

Camera:

• Image Sensor: 1/2.8" progressive scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/1 s to 1/30000 s
• Slow Shutter: Yes
• Day & Night: IR cut filter

Lens:

• Focus: Auto, semi-auto, manual
• Focal Length: 5 mm to 75 mm
• Zoom Speed: Approx. 2.3 s
• FOV (Field of View):
  • Horizontal field of view: 57.6° to 4° (wide-tele)
  • Vertical field of view: 34.4° to 2.2° (wide-tele)
  • Diagonal field of view: 64.5° to 4.6° (wide-tele)
• Aperture: Max. F1.6

Illuminator:

• Supplement Light Type: IR
• Supplement Light Range: IR Distance: up to 100 m

PTZ (Pan-Tilt-Zoom):

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speed: Configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: Yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Power-Off Memory: Yes
• Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video:

• Main Stream:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 kbps to 16384 kbps
• H.264 Type: Baseline profile/Main profile/High profile
• H.265 Type: Main profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 8 fixed regions for each stream

Audio:

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network:

• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
• Smooth Streaming: Yes
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Client: iVMS-4200, HikCentral Pro, Hik-Connect
• Web Browser: Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11

Image:

• Image Parameters Switch: Yes
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Wide Dynamic Range (WDR): 120 dB
• Defog: Digital defog
• Image Stabilization: No
• Regional Exposure: Yes
• Regional Focus: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
• SNR: > 52 dB

Interface:

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, supports microSD/SDHC/SDXC card, up to 256 GB
• Alarm: 1 input, 1 output
• Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• Reset: Yes

Event:

• Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function:

• Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting. Supports alarm triggering by specified target types (human and vehicle)

General:

• Demist: Yes
• Power: 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at)
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• Material: ADC12
• Dimension: Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42")
• Weight: Approx. 2 kg (4.41 lb)
• Approval:
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection, and voltage transient protection

This camera is a high-quality PTZ camera with various advanced features, including deep learning-based object classification, face capture, impressive optical zoom, and night vision capabilities. It is suitable for surveillance and security applications, even in challenging lighting and weather conditions.
