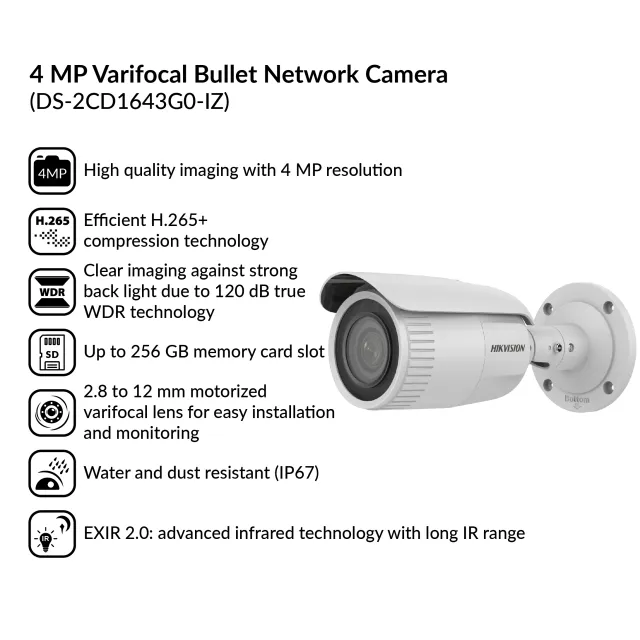

Hikvision 4MP Varifocal Bullet Network Camera | DS-2CD1643G0-IZ

The DS-2CD1643G0-I(Z) is a 4 MP EXIR VF Bullet Network Camera designed for surveillance and security. It offers several key features and specifications:

Key Features:

• 1/3" progressive scan CMOS sensor
• BLC (Backlight Compensation), 3D DNR (Digital Noise Reduction), ROI (Region of Interest)
• 2560 × 1440 resolution at up to 20fps
• IR (Infrared) range of up to 30 meters for night vision
• 2.8 mm to 12 mm varifocal lens
• IP67-rated for outdoor use
• Video compression: H.265+, H.265, H.264+, H.264
• Wide Dynamic Range (WDR) of 120 dB
• Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
• Built-in micro SD/SDHC/SDXC card slot, supporting up to 128 GB

Camera:

• Image Sensor: 1/3" Progressive Scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s, supports slow shutter
• Auto-Iris: No
• Day & Night: IR cut filter
• Digital Noise Reduction: 3D DNR
• WDR: 120 dB
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens:

• Focal Length: 2.8 to 12 mm
• Aperture: F1.6
• Focus:
  • -I: Manual
  • -IZ: Auto
• FOV (Field of View):
  • Horizontal: 98° to 28°
  • Vertical: 51° to 16°
  • Diagonal: 115° to 32°
• Lens Mount: Φ14

IR:

• IR Range: Up to 30 meters
• Wavelength: 850 nm

Compression Standard:

• Video Compression:
  • Main stream: H.265/H.264
  • Sub stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.264+ supports main stream
• H.265 Type: Main Profile
• H.265+ supports main stream
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-set:

• Region of Interest: 1 fixed region for main stream and sub-stream

Image:

• Max. Resolution: 2560 × 1440
• Main Stream Max. Frame Rate:
  • 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-stream Max. Frame Rate:
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement: BLC, 3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, scheduled

Network:

• Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage, and NAS (NFS, SMB/CIFS), ANR
• Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Function:

• One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Firmware Version: 5.5.3

API: ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View: Up to 6 channels

User/Host:

• Up to 32 users
• 3 levels: Administrator, Operator, and User

Client: iVMS-4200, iVMS-4500, iVMS-5200

Web Browser Compatibility:

• IE8+
• Chrome 31.0-44
• Firefox 30.0-51
• Safari 8.0+

Interface:

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Video Output (Without -Z): 1Vp-p composite output (75 Ω/BNC)
• Reset Button: Yes

General:

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 20%, 5.5 mm coaxial power plug
  • PoE (802.3af, class 3)
• Power Consumption and Current:
  • -IZ: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W
  • -I: 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W
• Protection Level: IP67
• TVS: 2000V lightning protection, surge protection, and voltage transient protection
• Material: Metal
• Dimensions: 105 mm × 105 mm × 145 mm (4.1" × 4.1" × 5.7")
• Weight:
  • Camera: approx. 1035 g (2.3 lb.)
  • With package: approx. 1550 g (3.4 lb.)

This camera is suitable for outdoor surveillance with its robust build, night vision capabilities, and adjustable lens. It supports various features for image quality enhancement and network storage options for video recording.
