- IP67 and IK10 ratings for weather and vandal resistance.
- Built-in micro SD/SDHC/SDXC card slot, supporting up to 128 GB of local storage.
- Motorized varifocal lens with a range of 2.8 to 12 mm.
- 2688 × 1520 resolution at 30fps.
- Excellent low-light sensitivity with minimum illumination as low as 0.01 Lux.
- Advanced video compression standards including H.265+ and H.264+ for efficient storage.
- 3-axis adjustment for flexible positioning.
- Smart features such as line crossing detection, intrusion detection, and face detection.
- Image Sensor: 1/3" Progressive Scan CMOS
- Min. Illumination:
- Color: 0.01 Lux @ F1.2, AGC ON
- 0.018 Lux @ F1.6, AGC ON
- 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Supported
- Day & Night: IR Cut Filter
- Digital Noise Reduction: 3D DNR
- WDR: 120dB
- 3-Axis Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Focal Length: 2.8 to 12 mm (Motorized varifocal lens)
- Aperture: F1.6
- Focus: Auto
- FOV (Field of View):
- Horizontal FOV: 104° to 29°
- Vertical FOV: 55° to 17°
- Diagonal FOV: 125° to 34°
- Lens Mount: Φ14
- IR Range: Up to 30 m
- Wavelength: 850nm
- Video Compression:
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+ and H.265+ support
- Video Bit Rate: 32 Kbps to 16 Mbps
- Smart Events: Line crossing detection, intrusion detection, face detection
- Basic Events: Motion detection, video tampering alarm, exception (e.g., network disconnected, IP address conflict, etc.)
- Linkage Method: Trigger recording, captured pictures uploading, notification, etc.
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Max. Resolution: 2688 × 1520
- Main Stream:
- Third Stream:
- Image Enhancement: BLC/3D DNR/HLC
- Image Settings: Adjust settings like rotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance via client software or web browser
- Network Storage: Supports Micro SD/SDHC/SDXC card (128G), local storage, and NAS (NFS, SMB/CIFS) with ANR
- Protocols: Various network protocols supported
- General Function: Includes anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via email, pixel counter, and more
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Security: Password protection, encryption, authentication methods, and more
- Simultaneous Live View: Supports up to 6 channels
- User/Host: Up to 32 users with different access levels
- Supported Clients: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Compatibility with various web browsers, including plug-in free live view options
- Audio (-S): 1 input (line in/mic.in), 1 output (line out), mono sound, terminal block
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- Alarm (-S): 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output: 1Vp-p Composite Output (75Ω) for adjustment purposes
- On-board Storage: Built-in Micro SD/SDHC/SDXC slot, supports up to 128 GB
- SVC: H.264 and H.265 encoding
- Reset Button: Yes
- Audio (-S) - Environment Noise Filtering: Supported
- Audio Sampling Rate: Multiple options
- Audio Compression: Various audio compression formats supported
- Operating Conditions: -30°C to +60°C (-22°F to +140°F), Humidity 95% or less (non-condensing)
- Web Client Language: Support for 32 languages
- Power Supply: 12 VDC ± 25%, terminal block, PoE (802.3af, class 3)
- Power Consumption and Current: Detailed power consumption information provided
- Protection Level: IP67, IK10
- Material: Metal

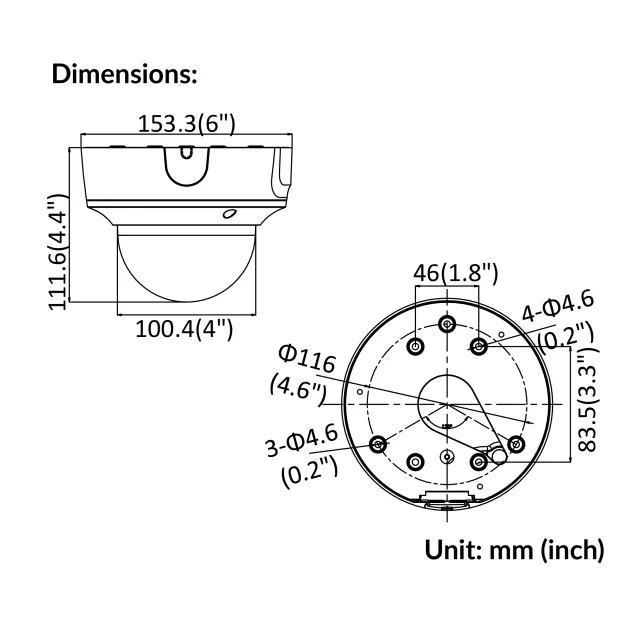

- Dimensions: Camera: Φ 153.3 × 111.6mm (Φ 6" × 4.4")
- Weight: Camera: Approx. 835g (1.8 lb.), With Package: Approx. 1305g (2.9 lb.)
This camera appears to be a versatile option for surveillance and security applications, offering a range of advanced features and settings for customization.
