LG 32" Signage 32SM5J-B

$864.00

Tax included. Shipping calculated at checkout.

Shipping Ask about this product

Vendor: LG
Product Type: Signage

DESCRIPTION
REVIEWS

Full HD Standard Signage

Key Features

Brightness(Typ.) : 400 cd/m²
Bezel : 13 mm (T/R/L), 18 mm (B)
Depth : 55.5 mm
Interface : HDMI(3) / USB 2.0 / RS232C / RJ45 / IR / Audio Out
Built-in Speaker : 10W + 10W

LG webOS Standard Signage

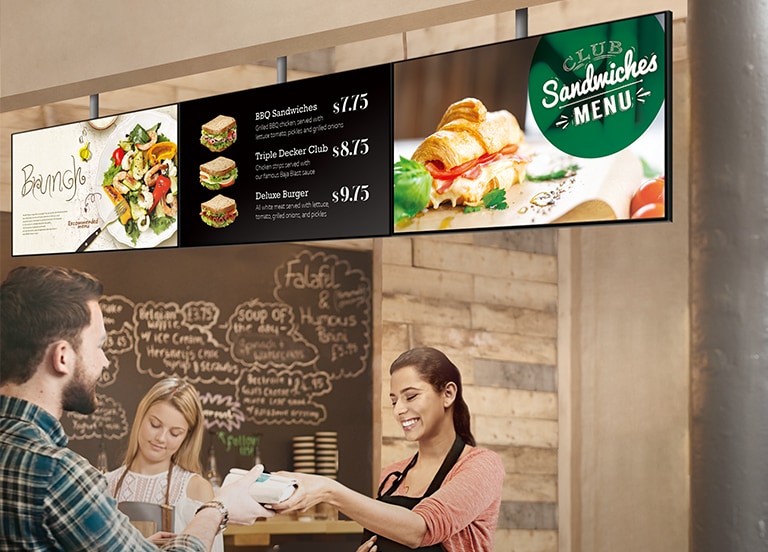

The staff in a sandwich store is handing a sandwich to a customer. The SM5J series showing a menu board is installed above them, displaying sandwich menus with brunch promotions.

* All images in this web page are for illustrative purposes only and may differ from the actual product.

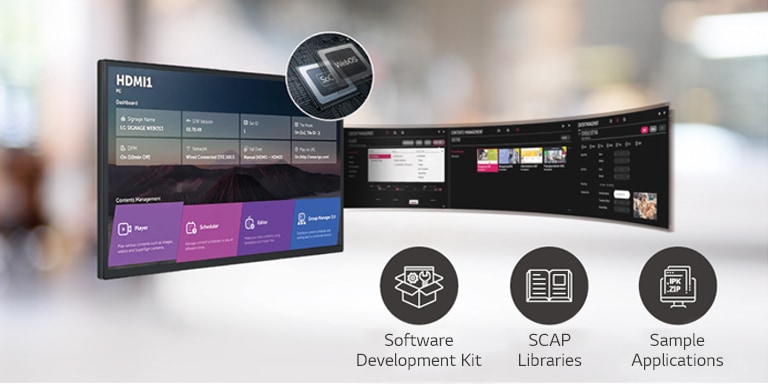

This image shows that several tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

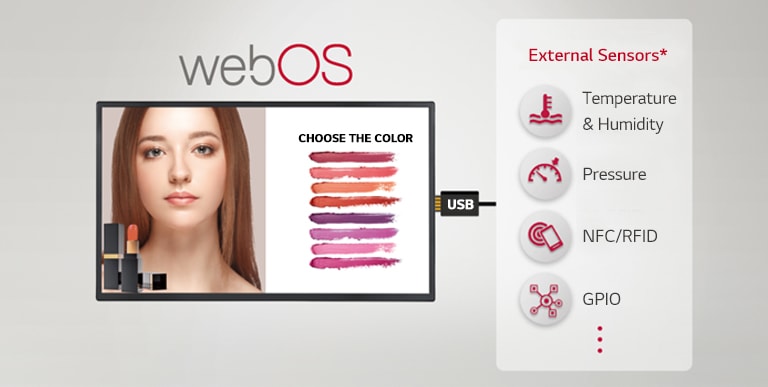

The image shows that various external sensors and signage can be connected through a USB plug-in, providing easy value-added solutions.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

* External sensors need to be purchased separately and tested for compatibility with webOS platform.

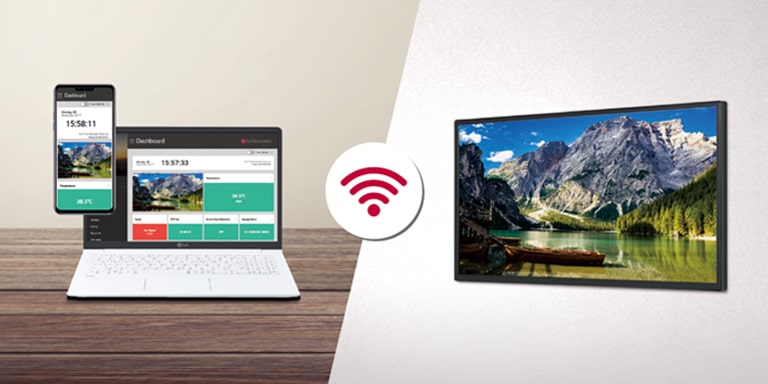

This image shows that the content set on the Control Manager page and the content displayed on the signage are the same. It indicates that the SM5J series can be remotely controlled and monitored in a different place with devices such as a mobile phone and a laptop, through the Control Manager.

Mobile & Web Monitoring

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.

* The mobile devices need be connected with the Signage IP address and can control one Signage at a time.
** Control Manager is optimized for Google Chrome 56 version and above.

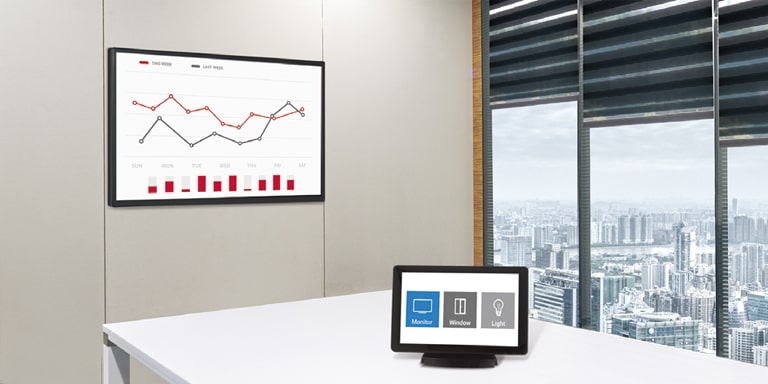

There is SM5J installed in the meeting room with one of AV control system, which helps users control AV of the SM5J series.

Compatible with AV Control System

The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

The LG employee is remotely monitoring the SM5J series installed in a different place.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.

Smart Signage Platform

Coupons or sales promotions can be offered via Bluetooth. Also, the content of the Signage, installed on the wall of the store, has the same one of the mobile device, a person is holding, by the Content Mirroring function via the WiFi network. The SM5J series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can be connected wirelessly to the PC and mobile phone which she is holding.

Real-Time Promotion

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing

Content Mirroring among devices is available on a Wi-Fi network.
Wireless Access Point

The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.

PANEL:

Screen Size: 32"
Panel Technology: IPS
Native Resolution: 1920 × 1080 (FHD)
Brightness: 400 nit (Typ.)
Contrast Ratio: 1100:1
Dynamic Contrast Ratio: 1,000,000:1
Viewing Angle (H × V): 178 × 178
Response Time: 10 ms (G to G)
Surface Treatment (Haze): 1%
Operation Hours (Hours/Day): 24/7
Orientation: Portrait / Landscape

CONNECTIVITY:

Input: HDMI (3, HDCP 2.2), USB 2.0 (Type A)
Output: Audio Out (Off / Fixed / Variable)
External Control: RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type)

MECHANICAL SPECIFICATION:

Bezel Color: Black
Bezel Width: 13 mm (T/R/L), 18 mm (B)
Monitor Dimension (W × H × D): 729.4 mm × 428.9 mm × 55.5 mm
Weight (Head): 5.7 kg
Monitor Dimension with Stand (W × H × D): 729.4 mm × 481 mm × 154.2 mm
Weight (Head + Stand): 6.5 kg
VESA™ Standard Mount Interface: 200 x 200 mm

KEY FEATURE:

Internal Memory: 8 GB
Built-in Wi-Fi
Temperature Sensor
Auto Brightness Sensor
webOS 6.0
Embedded CMS (Local Contents Scheduling, Group Manager)
USB Plug & Play
Fail Over
Background Image (Booting Logo Image, No Signal Image)
Screen Share
Play via URL
Setting Data Cloning
SNMP
ISM (Image Sticking Minimization) Method
Control Manager
Smart Energy Saving
PM Mode
Wake on LAN
Beacon
HDMI-CEC (Compatibility may differ by equipment)
SI Sever Setting
webRTC
Pro:Idiom

ENVIRONMENT CONDITIONS:

Operation Temperature: 0°C to 40°C
Operation Humidity: 10% to 80%

POWER:

Power Supply: AC 100-240 V~, 50/60 Hz
Power Type: Built-In Power

POWER CONSUMPTION:

Typ. / Max.: 55 W / 75 W
BTU (British Thermal Unit): 187.67 BTU/Hr (Typ.), 255.911 BTU/Hr (Max.)

SOUND:

Speaker: Yes (10 W × 2 EA)

CERTIFICATION:

Safety: CB / NRTL
EMC: FCC Class "A" / CE
ErP / Energy Star: No / Yes

SOFTWARE COMPATIBILITY:

SuperSign CMS
SuperSign Control / Control+
SuperSign WB
SuperSign Media Editor
LG ConnectedCare

ACCESSORY:

Basic: Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender
Optional: Stand (ST-322T), Wall Bracket (LSW230B), VESA Adapter (AM-B220S)
