• Do contact us for stock availability. Items that is ready stock may have 2 - 7 working days processing time. Items based on indent may have a lead time of 4 - 7 weeks excluding weekend.
LG 55VM5J-H
LG 55VM5J-H
LG 55VM5J-H

    LG 55VM5J-H

    $4,259.00
    Shipping calculated at checkout.

    55VM5J-H

    55'' 500 nits FHD Slim Bezel Video Wall

    • Brightness(Typ.) : 500 nit
    • Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
    • Depth : 86.9 mm
    • Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
    • Screen Size 55"
      Panel Technology IPS
      Aspect Ratio 16:9
      Native Resolution 1,920 X 1,080 (FHD)
      Brightness (Typ.) 500nit
      Contrast Ratio 1,100:1
      Viewing Angle (H x V) 178 X 178
      Response Time 8ms (G to G)
      Surface Treatment (Haze) 28%
      Operation Hours (Hours / Days) 24/7
      Portrait / Landscape Yes / Yes
    • Connectivity

    • Input HDMI (2, HDCP2.2), DP (HDCP2.2), DVI-D (HDCP1.4), Audio, USB2.0 Type A(1)
      Output DP (Input : HDMI / DVI / DP), Audio
      External Control RS232C In/Out, RJ45 In/Out, IR In
    • Power

    • Power Supply AC 100-240V~, 50/60Hz
      Power Type Built-In Power
    • Power Consumption

      Typ./Max. 160 W / 190 W
      Power off 0.5 W
      Smart Energy Saving 90W
      DPM 0.5 W
      BTU (British Thermal Unit) 546 BTU/Hr(Typ.), 648 BTU/Hr(Max)

    Seamless Large Screens with Extreme-Narrow Bezel

    The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

    A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel.
    * The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

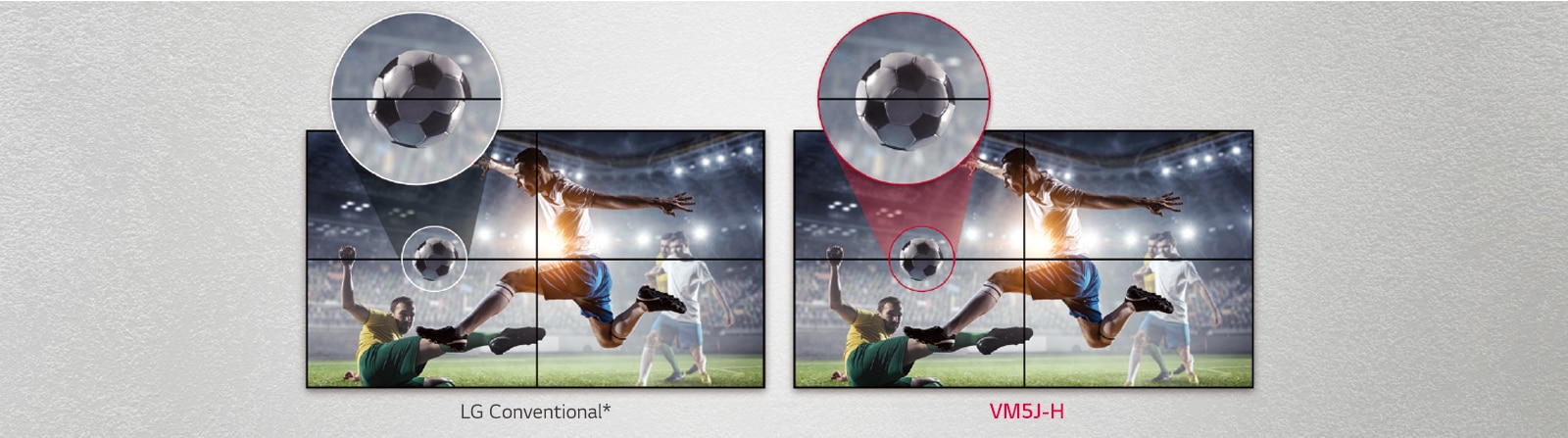

    Image Gap Reduction

    The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

    VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.
    * The "LG Conventional" refers to displays which do not include an image improvement algorithm.
    ** The image shown above are for illustration purposes only.
    * Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
    * Supported protocols : RTSP, RTP, HLS, UDP Multicast

    Conformal Coating

    Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

    The VM5J-H has Conformal Coating on the major circuit board (power board) to protect video wall even in a salty or humid environment.
    * Actual images (Signage display) available may differ from the example images shown.

    EMC Class B Certified

    The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

    The VM5J-H, certified with EMC class B, is installed on the control room wall.

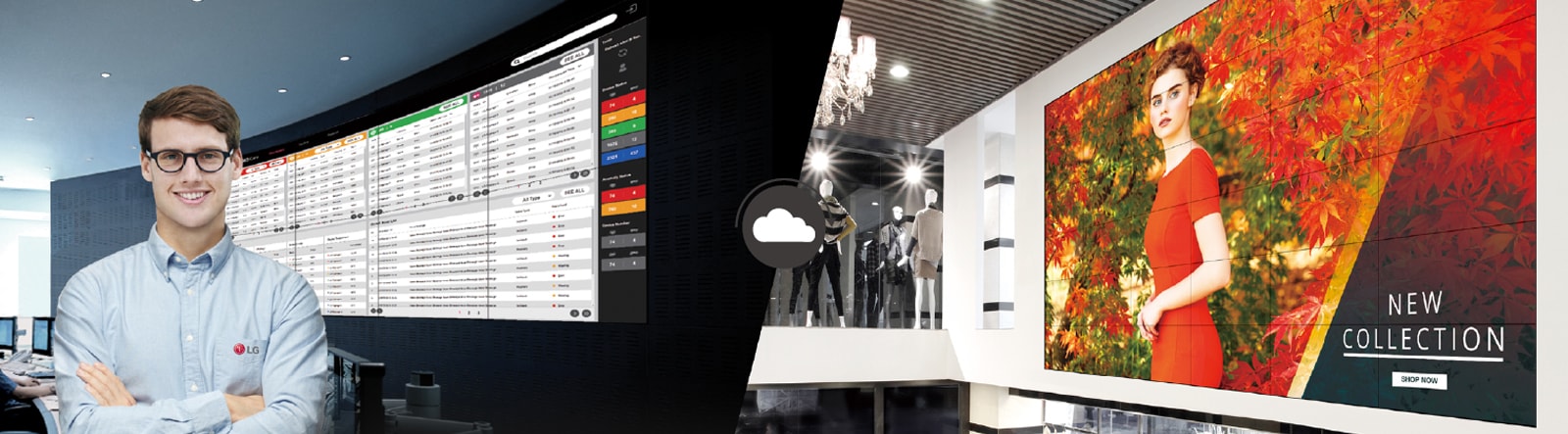

    Real-Time LG ConnectedCare

    Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

    The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution.
    * LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

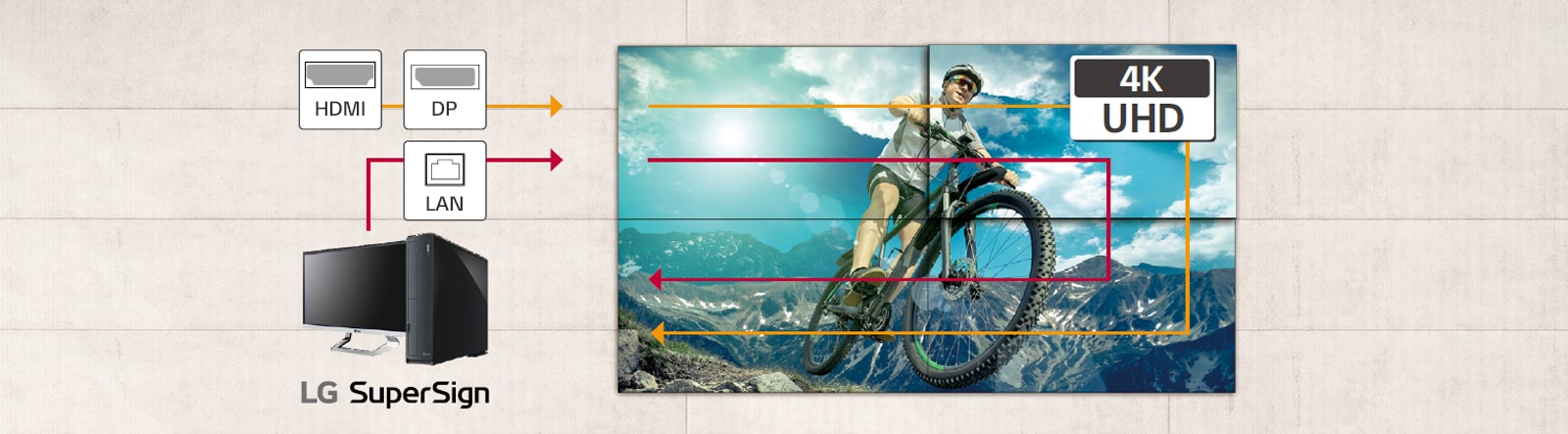

    Daisy Chain Capability

    A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

    Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

    IP5x Certified Design

    The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation.

    The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust.
