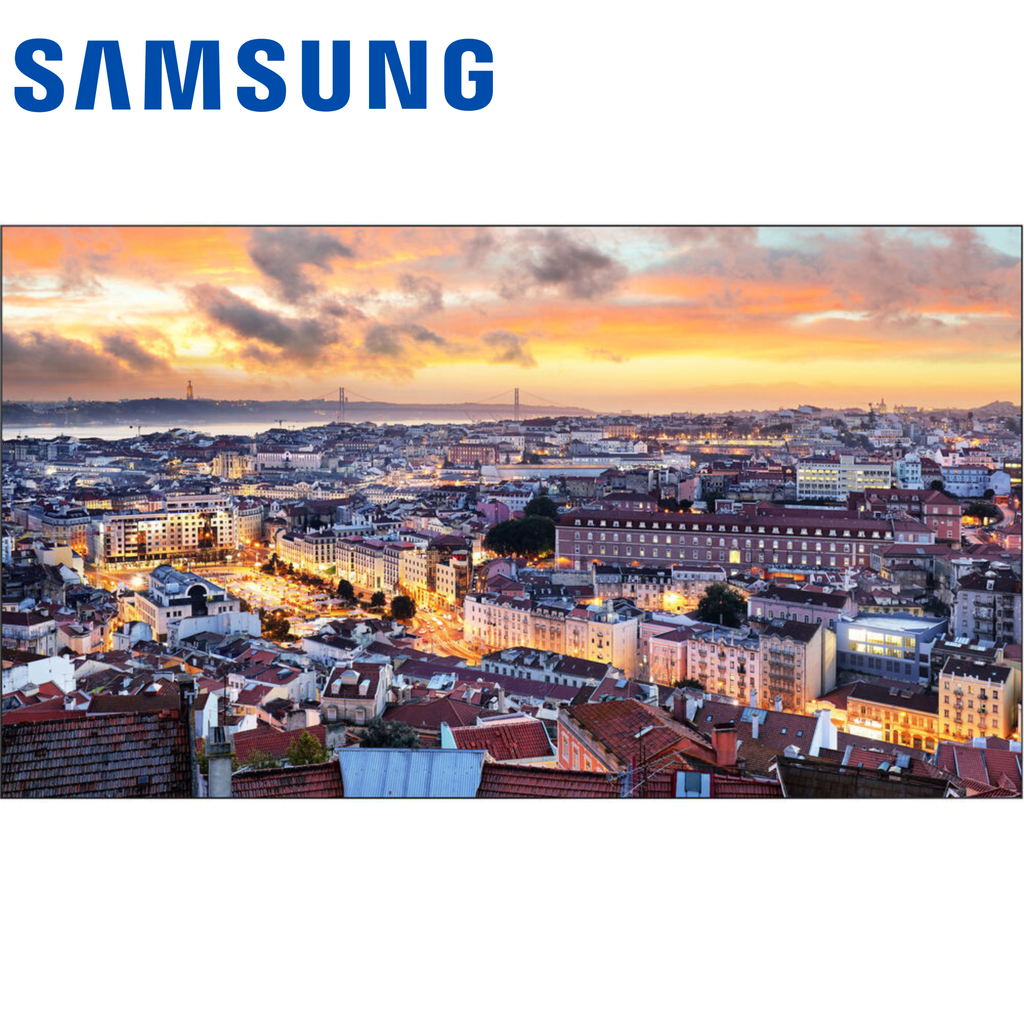

| Specification | Samsung 55" Video Wall VHC-E with Extreme Narrow Bezel |
|---|---|
| Product Information | |
| Product Name | Samsung 55" Video Wall VHC-E with Extreme Narrow Bezel |
| Model | VHC-E |
| Display | |
| Pixel Pitch (mm) | 0.63mm(H) * 0.63mm(V) |
| Response Time (G-to-G) | 8ms |
| Diagonal Size Class | 55" |
| Diagonal Size Measured | 54.6" / 138.7cm |
| Type | IPS |
| Resolution | 1920*1080 |
| Active Display Area (mm) | 1209.6 * 680.4mm |
| Brightness | Max 500 cd/m2 |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H/V) | 178/178 |
| Display Colors | 8 bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 24/7 |
| Haze | 25% |
| Contrast Ratio (Dynamic) | 45,000:1 |
| Orientation | Landscape / Portrait |
| H-Scanning Frequency | 62.7kHz ~ 72.3kHz |
| V-Scanning Frequency | 57Hz ~ 63Hz |
| Maximum Pixel Frequency | 82MHz |
| Connectivity | |
| RGB Input | DVI-D, Display Port 1.2 |
| VIDEO Input | HDMI 2.0 (2) |
| HDCP Input | HDCP 2.2 |
| AUDIO Input | Stereo mini Jack |
| USB Input | Only F/W upgrade |
| RGB Output | DP1.2(Loop-out) |
| AUDIO Output | Stereo mini Jack |
| External Control | RS232C(in/out), RJ45 |
| External Sensor | Detachable type(IR) |
| Power | |
| Power Supply | AC 100 - 240 V, 50/60 Hz |
| Sleep Mode | less than 0.5W |
| Off Mode | less than 0.5W |
| Power Consumption Max [W/h] | 242W |
| Power Consumption Typical [W/h] | 145 |
| Type | Internal |
| Power Consumption BTU (Max) | 825 |
| Dimensions | |
| Set Dimension (WxHxD) | 1213.5 x 684.3 x 73.1 |
| Package Dimension (WxHxD) | 1398 x 844 x 257 |
| Weight | |
| Set Weight | 21.2 kg |
| Package Weight | 28.8 kg |
| Operation Conditions | |
| Temperature | -0~40℃ |
| Humidity | 10 ~ 90% |
| Mechanical Specification | |
| VESA Mount | 600 x 400 mm |
| Bezel Width | 2.3mm(U/L), 1.2mm(R/B) |
| Certification and Compliance | |
| EMC | Class A |
| Safety | 60950-1 |
| IP Rating | IP5X |
