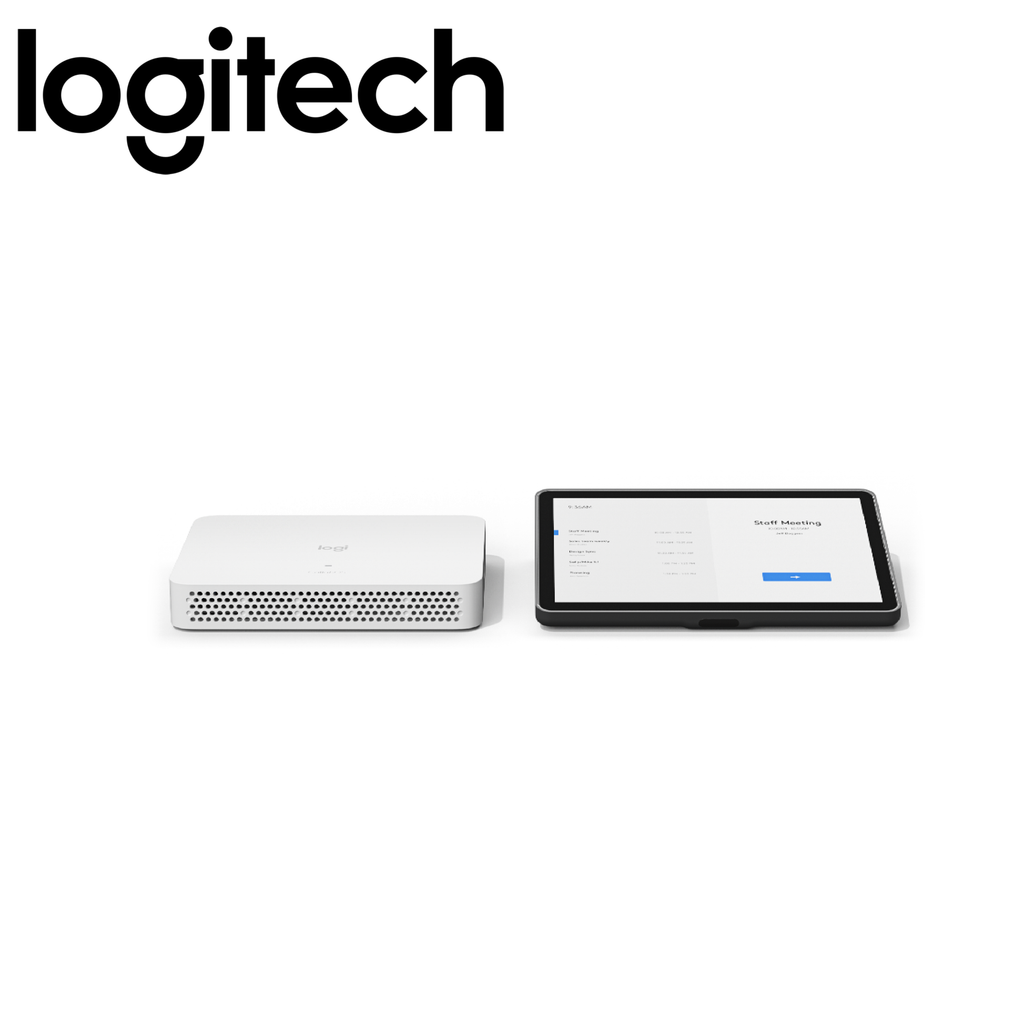

Logitech RoomMate + Tap IP (Graphite)

Download Datasheet

ROOMMATE + TAP IP + COMPUTE MOUNT
Upgrade an existing room from PC to Appliance mode by adding RoomMate. Leverage a Logitech MeetUp, Rally, or Rally Plus with RoomMate + Tap IP to make any room a complete appliance-based solution.

TECHNICAL SPECIFICATIONS
General Specifications

• Tap IP
• Touch Screen: 257 mm diagonal screen with 14° display angle
• Resolution: 1280 x 800
• Cabling: Power over Ethernet (PoE) cable (not included), IEEE 802.3af Type 1, Class 3 device
• Cable Management: Internal cable retention and strain relief system
• Ethernet: 10/100 Mbps
• Wi-Fi: 802.11a/b/g/n/ac
• Device Management: Logitech Sync
• Color: Graphite
• Mounting: 100 mm x 100 mm VESA FDMI

RoomMate

• Operating System: Logitech CollabOS 1.4 or higher
• Device Management: Logitech Sync and supported device management platforms
• Certified Hardware: Logitech MeetUp, RallyCamera, Rally System, Rally Plus System, Tap, Tap IP
• Verified Hardware: Biamp TesiraFORTÉ X 400, QSCQ-SYS Core 8 Flex, Shure IntelliMix P300. For latest information on compatible products, contact yourpreferred partner
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy,Proxy using PAC file
• Interfaces
• HDMI Out: 2
• HDMI In: 1
• MAC: 3x Type A
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac
• Operating Voltage/Power: 100-240V, 19V, 4.74A
• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP
• Device Security: Kensington Lock
• Color: White
• Compute Mount
• Fits Logitech RoomMate and other compute devices with 100x100 or 75x75 VESA pattern

Certifications & Compatibility

• Appliance Mode
• Supports compatible video conferencing software including
• Microsoft Teams Rooms on Android
• Zoom Rooms
• RingCentral Meetings Rooms
